200 PRO-HP MK2...10-80 Meters
$839.00 USD
Skip to product information
200 PRO-HP MK2...10-80 Meters
$839.00 USD

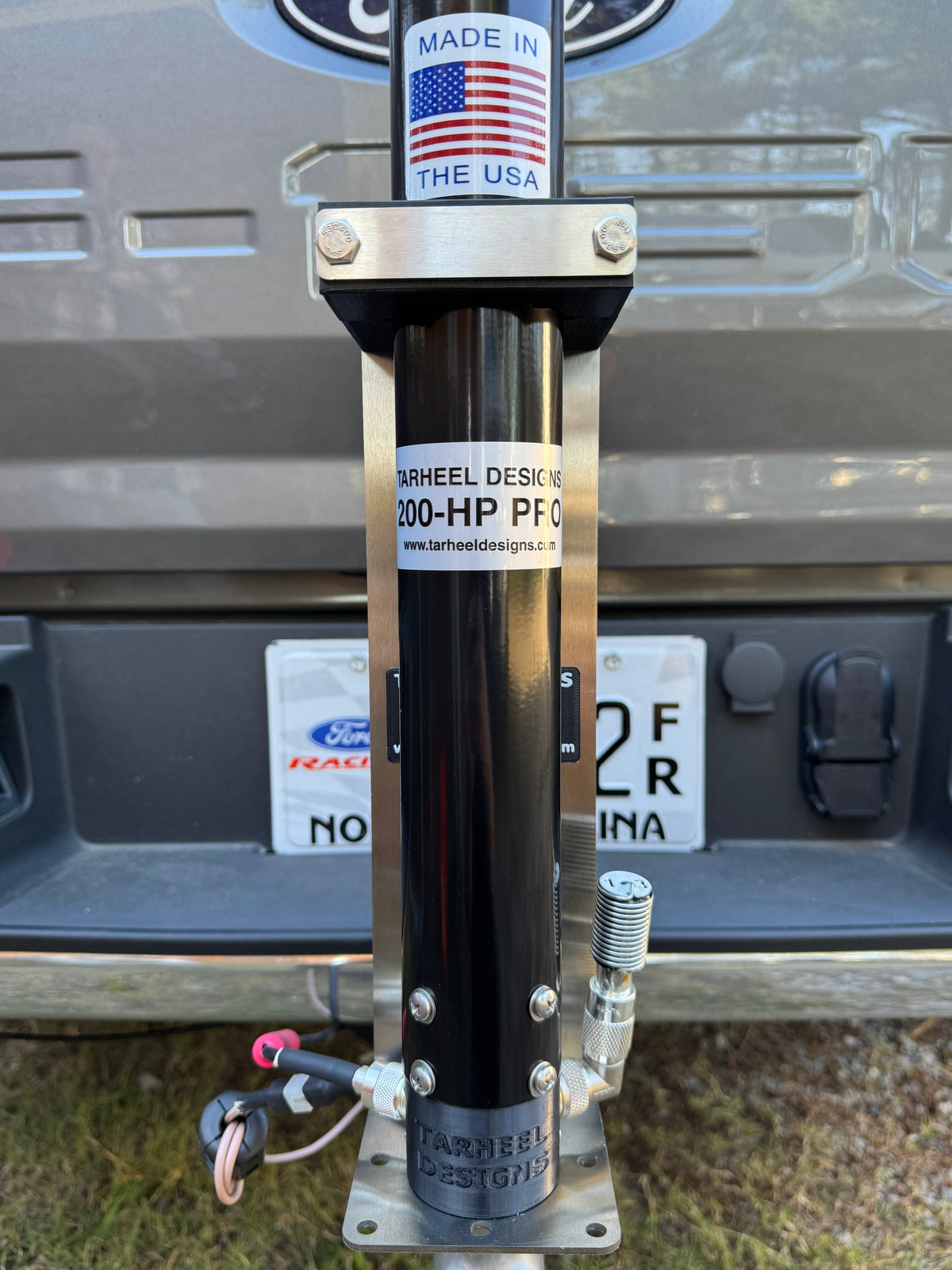

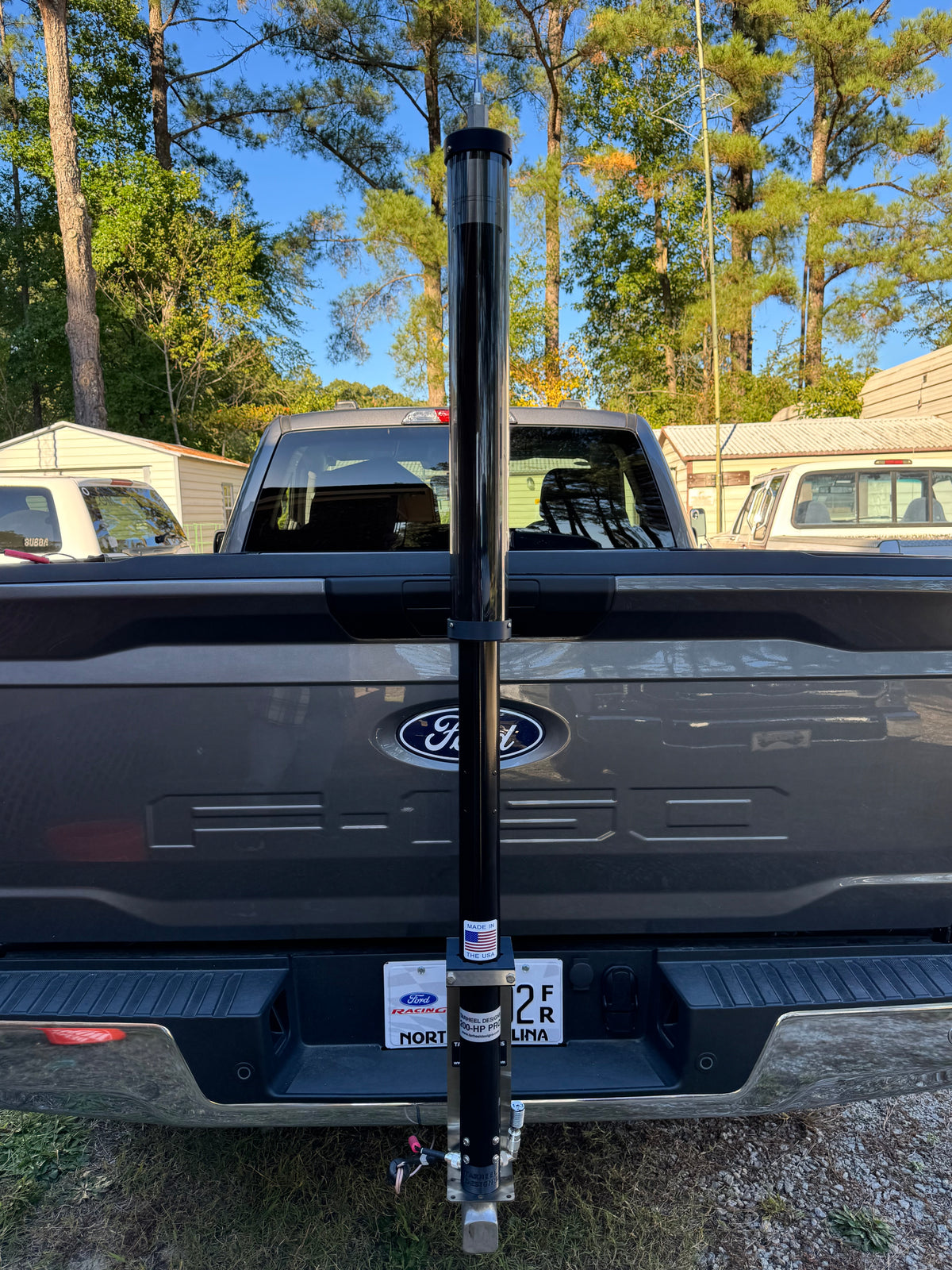

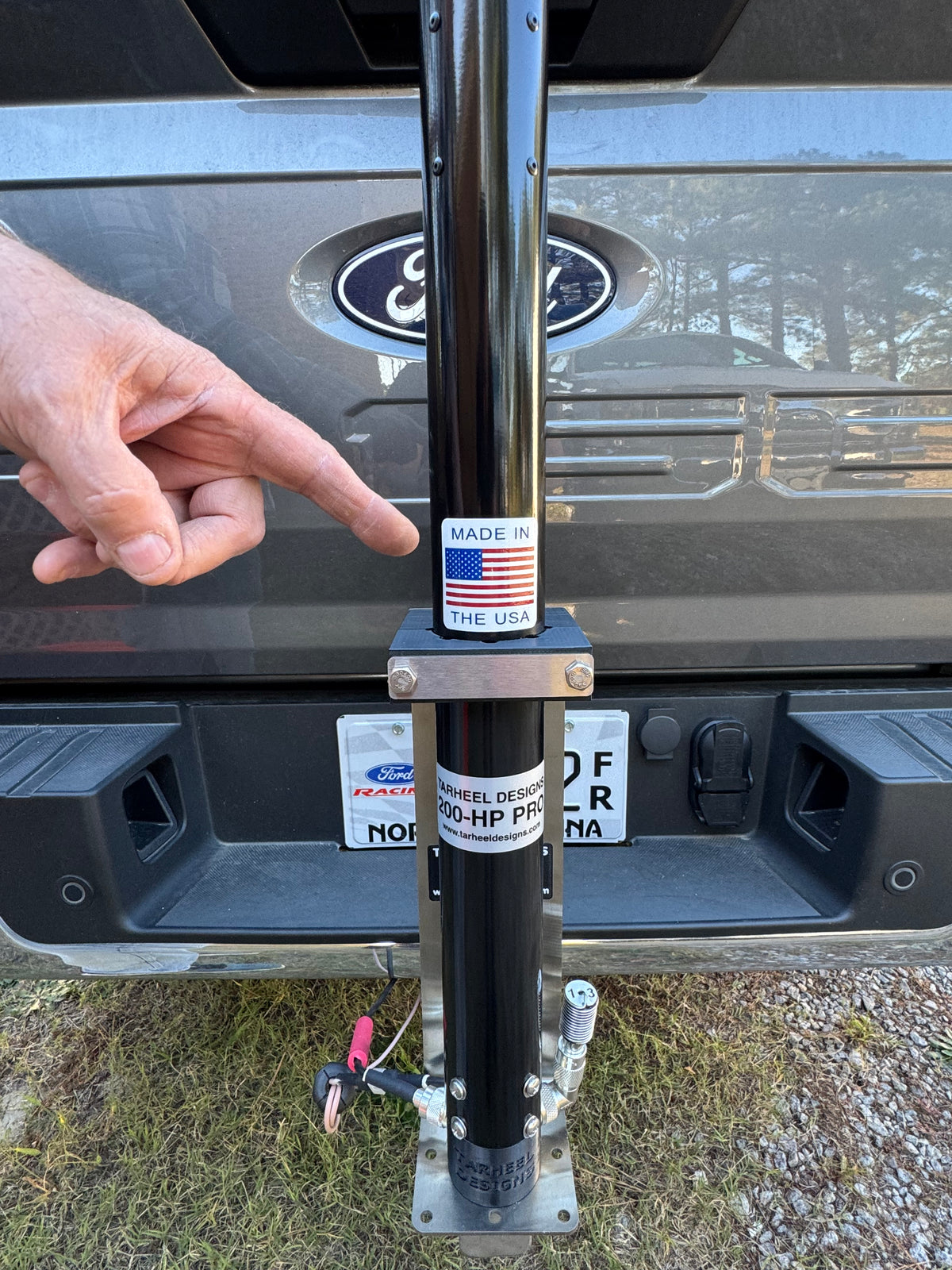

The 200 PRO-HP MK2 is a heavy duty long base length antenna, meaning it's made to be mounted at frame/hitch level on a SUV, car or truck.. Requires heavy duty mounting.
MK2 Series Updates:
-
Includes the Large Cradle Mount as part of package.
-
The Lower Bottom Plug is redesigned for 1/2" Stainless bolt mounting.
-
The Lower Bottom Plug also has reversible dual feed, one for Coax and one for "Spud" Matching.
- Lower Mast Length -- 48"
- Lower Mast Diameter -- 2.125"
- Whip Length -- 46" and 66"
- Coil Diameter -- 2" -- 14ga 8TPI
- Frequency Coverage w/46" Whip -- 3.7 to 30 MHz
- Frequency Coverage w/66" Whip -- 3.3 to 26 MHz
- ICAS Power Rating SSB, CW -- 1000 Watts
- ICAS Power Rating AM, FM, Digital -- 500 Watts
- Total Length 26 MHz -- 114"
- Total Length 3.5 MHz -- 128"
- 1/2” Direct Bolt Mounting
- Weight -- 9.0 Lbs
- Double Roller Ball Thrust Bearing
- Extended Sensor Counter for Controllers
Included with Antenna

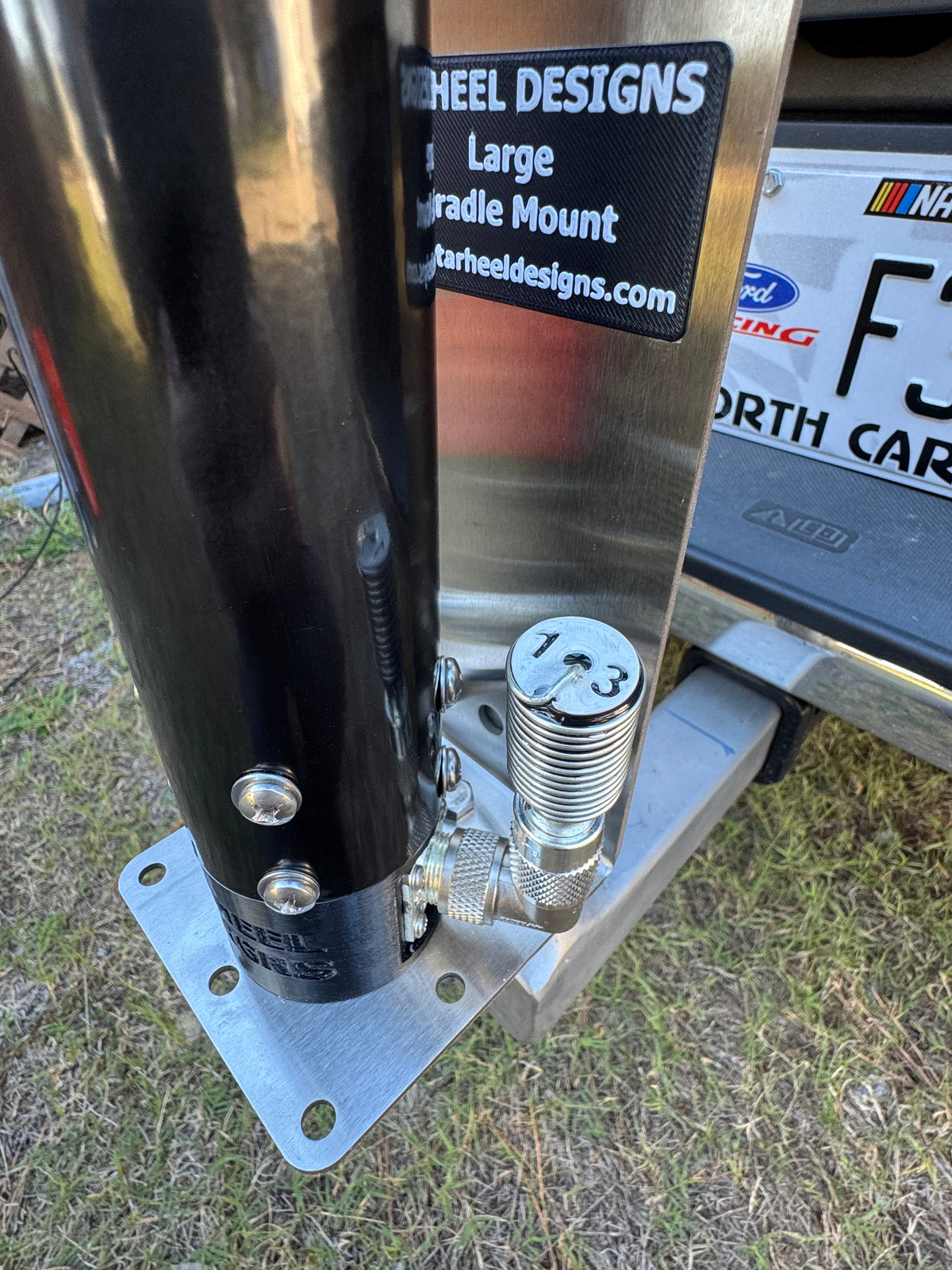

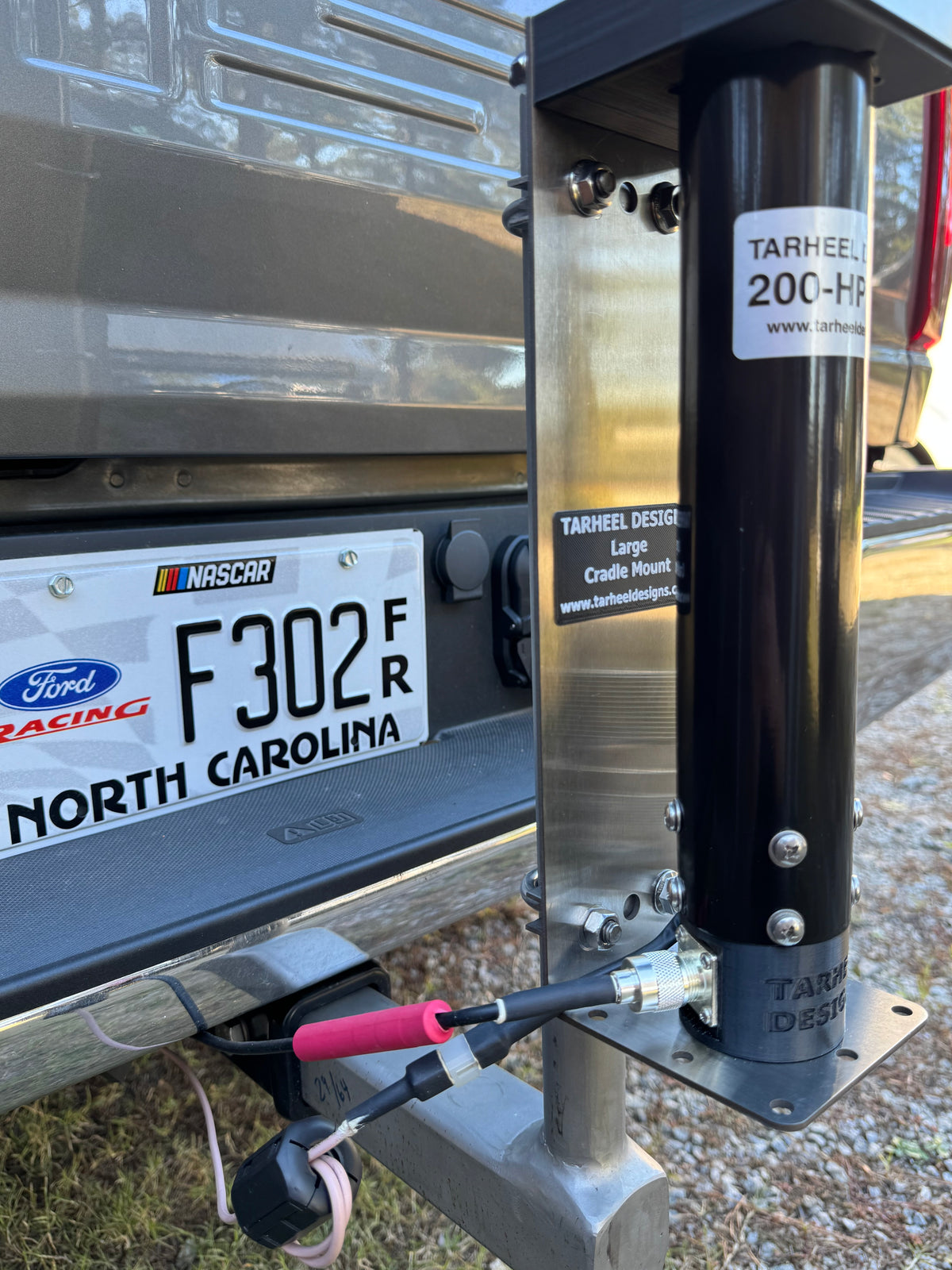

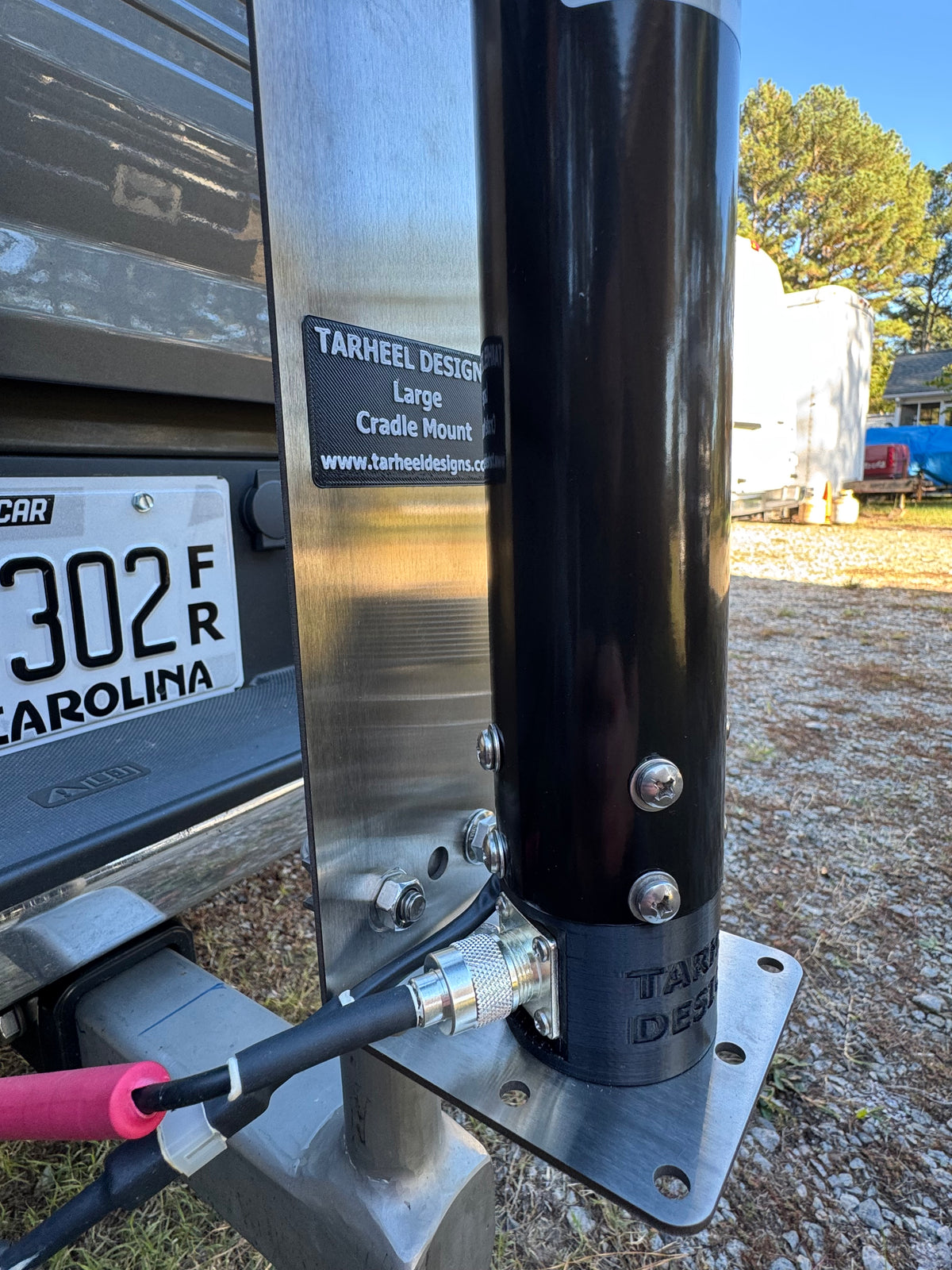

- Large Cradle Mount
- 46” and 66" Whip
- Up/Down Switch
- 20' Control Cable w/Gold Plated Connectors
- 1/2" Snap-it Ferrite
- Triple Match “Spud” #13 1.385uH
- 90 Degree Coax adapter for “Spud”
