1000 PRO-HP MK2...10-80 Meters
$995.00 USD
Skip to product information
1000 PRO-HP MK2...10-80 Meters
$995.00 USD

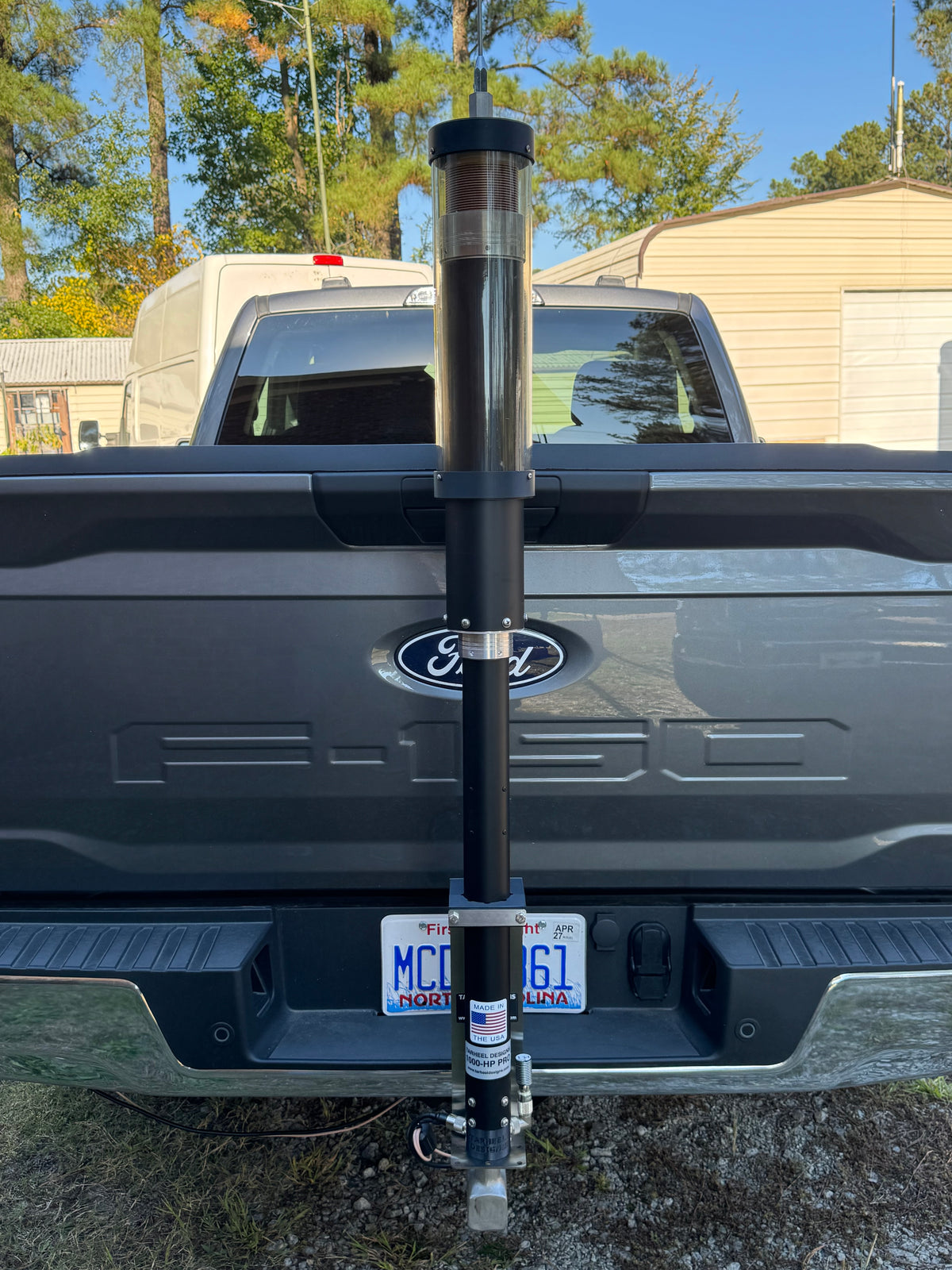

The 1000 PRO-HP MK2 is a heavy duty long base length antenna, meaning it's made to be mounted at frame/hitch level on a SUV, car or truck.. Requires heavy duty mounting.
Unique design, The lower part of the mast is 2.125" and will work on our Large Cradle Mount (included)...The upper part of the mast is stepped up to 3.5" to accept the large 3" coil
MK2 Series Updates:
-
Includes the Large Cradle Mount as part of package.
-

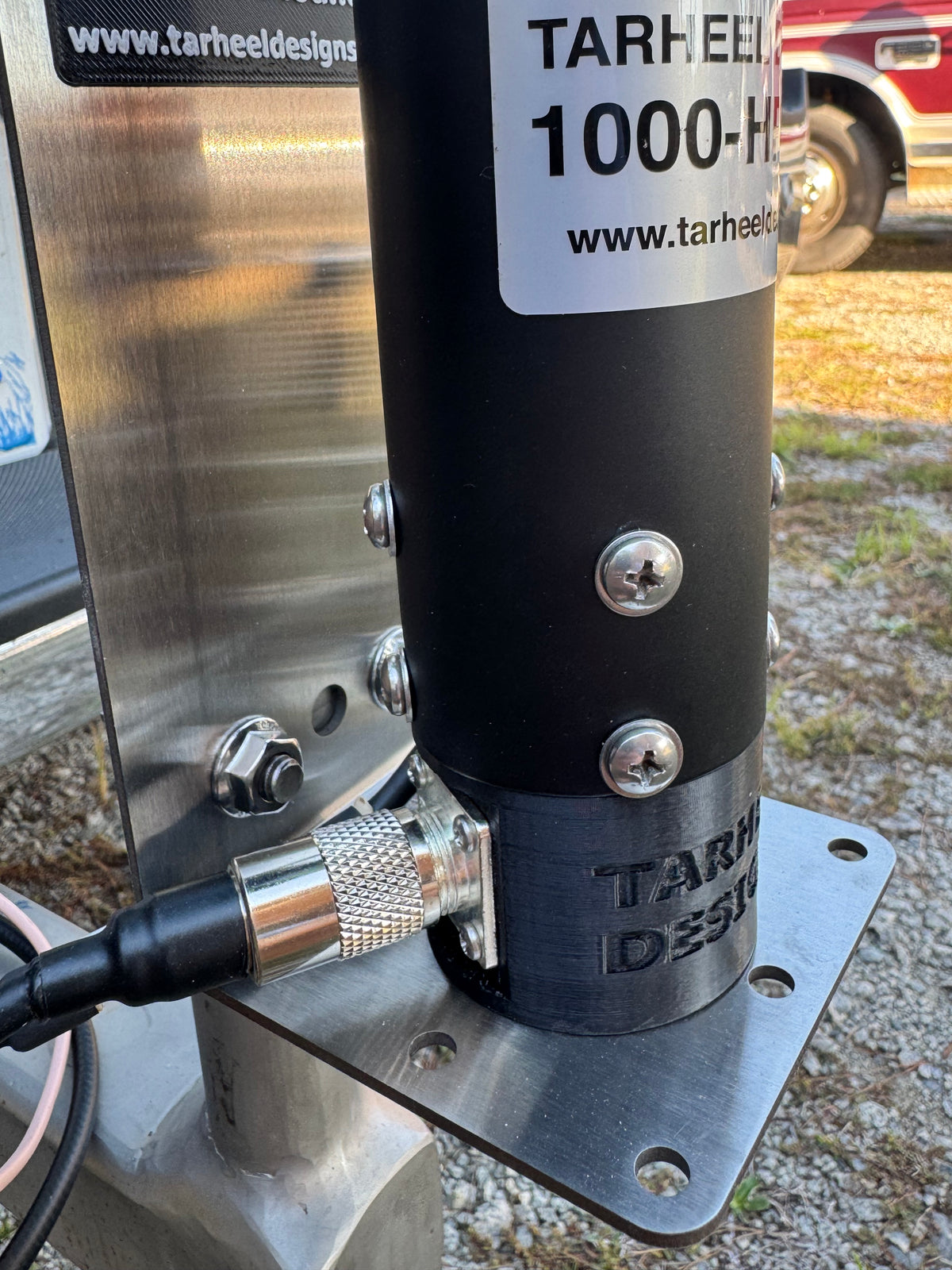

The Lower Bottom Plug is redesigned for 1/2" Stainless bolt mounting.
-
The Lower Bottom Plug also has reversible dual feed, one for Coax and one for our new "Spud" Matching.
- Lower Mast Length -- 46"
- Whip Length -- 46" and 66"
- Coil Diameter -- 3" -- 14ga 8TPI
- Frequency Coverage w/46" Whip -- 3.8 to 30 Mhz
- Frequency Coverage w/66" Whip -- 3.0 to 26 MHz
- ICAS Power Rating SSB, CW -- 1000 watts
- ICAS Power Rating AM, FM, Digital -- 500 watts
- Total Length 29 MHz -- 116"
- Total Length 3.5 MHz -- 124"
- 1/2" Stainless Bolt Mounting
- Weight -- 9.0 Lbs
- Double Roller Ball Thrust Bearing
- Extended Sensor Counter for Controllers.
Included with Antenna
- Large Cradle Mount
- 46" and 66" Whip
- Up/Down Switch
- 20' Control Cable w/gold plated connectors
- 1/2" Snap-it Ferrite

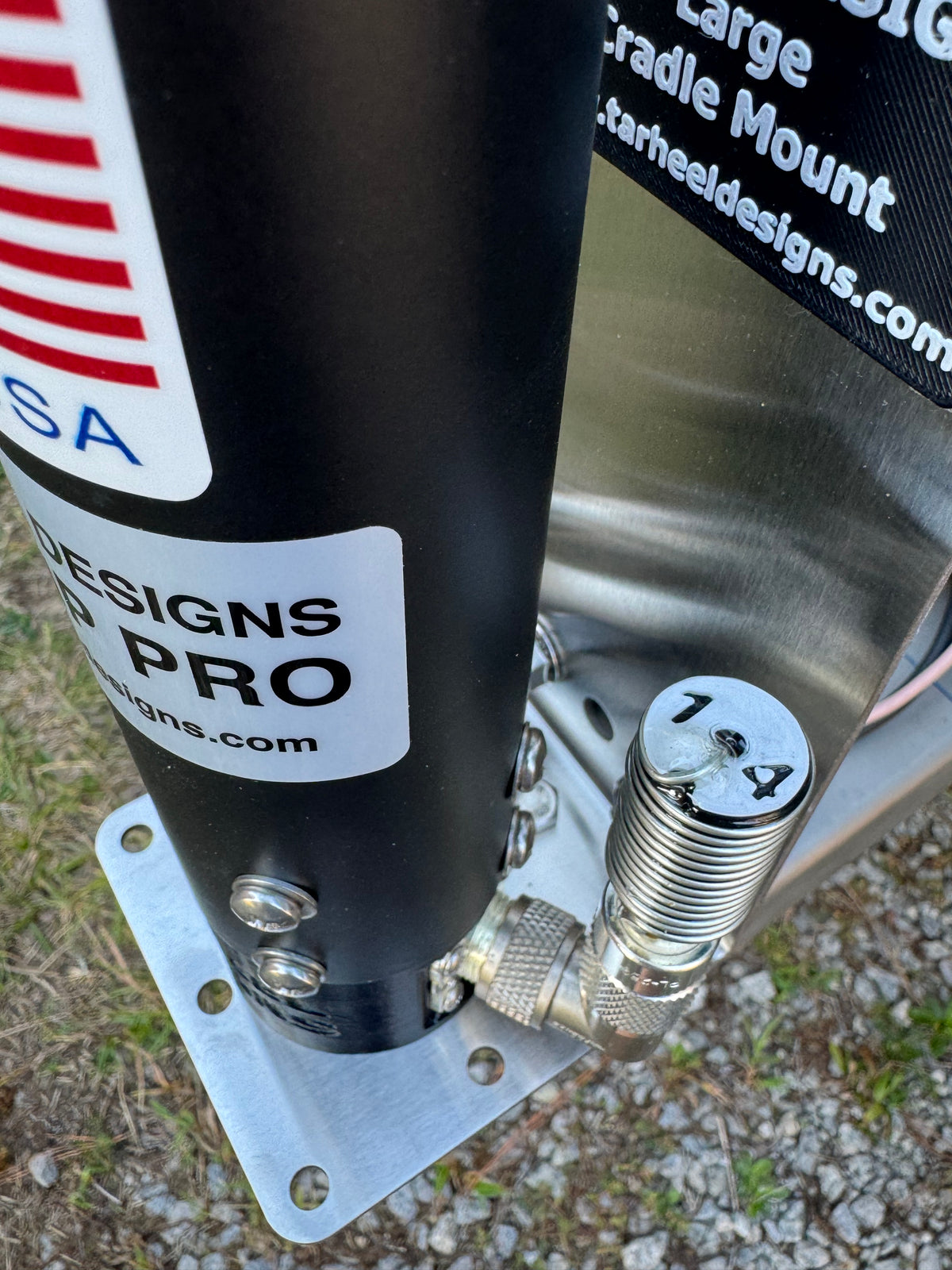

- Triple Match "Spud" #14 1.520uH
- 90 Degree Coax adapter for “Spud”
Made in the USA
