100 PRO-HP MK2...10-80 Meters

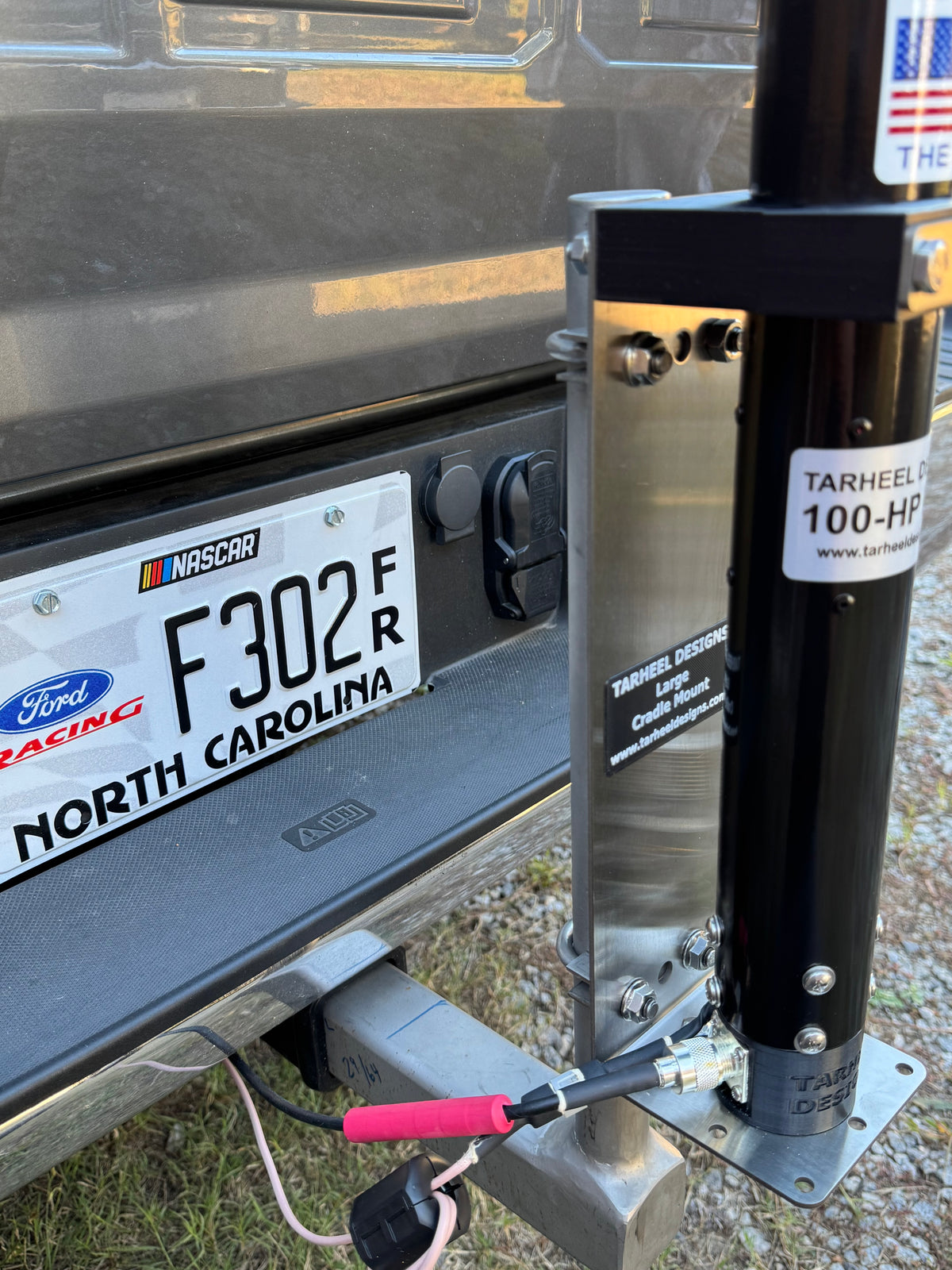

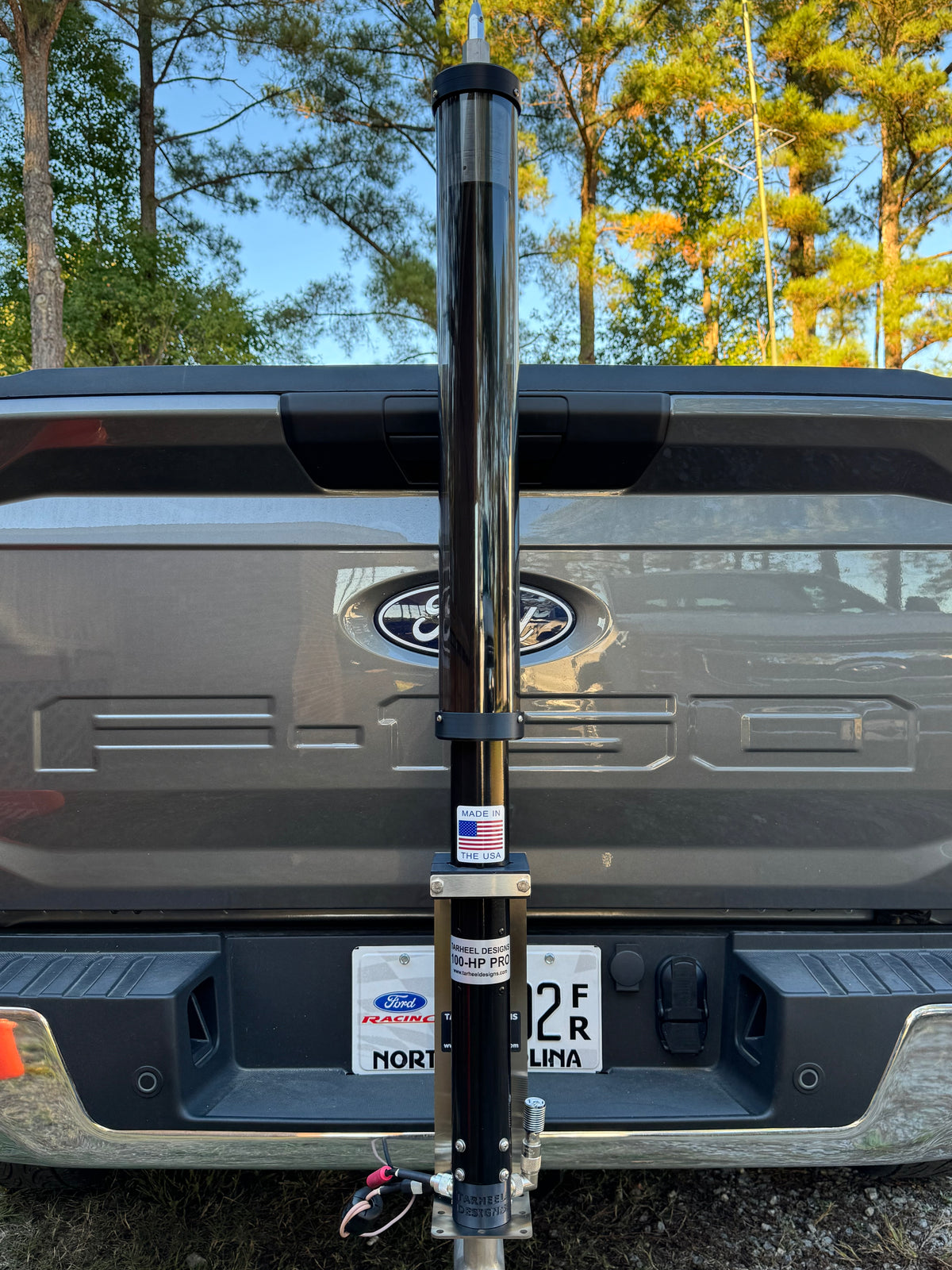

The 100 PRO-HP MK2 is a heavy duty medium base length antenna, meaning it's made to be mounted at mid height on the vehicle like the bed of a truck or the hitch on a car or truck..Requires heavy duty mounting.

MK2 Series Updates:

1. Includes the Large Cradle Mount as part of package.

2. The Lower Bottom plug is redesigned for 1/2" Stainless bolt mounting.

3. The Lower Bottom plug also has reversible dual feed, one for Coax and one for "Spud" Matching.

• Lower Mast Length -- 36"
• Lower Mast Diameter -- 2.125"
• Whip Length -- 66"
• Coil Diameter -- 2" -- 14ga  8TPI
• Frequency Coverage w/66" Whip -- 3.5 to 29 MHz
• ICAS Power Rating SSB, CW -- 1000 Watts
• ICAS Power Rating AM, FM, Digital -- 500 Watts
• Total Length 29 MHz -- 102"
• Total Length 3.5 MHz -- 116"

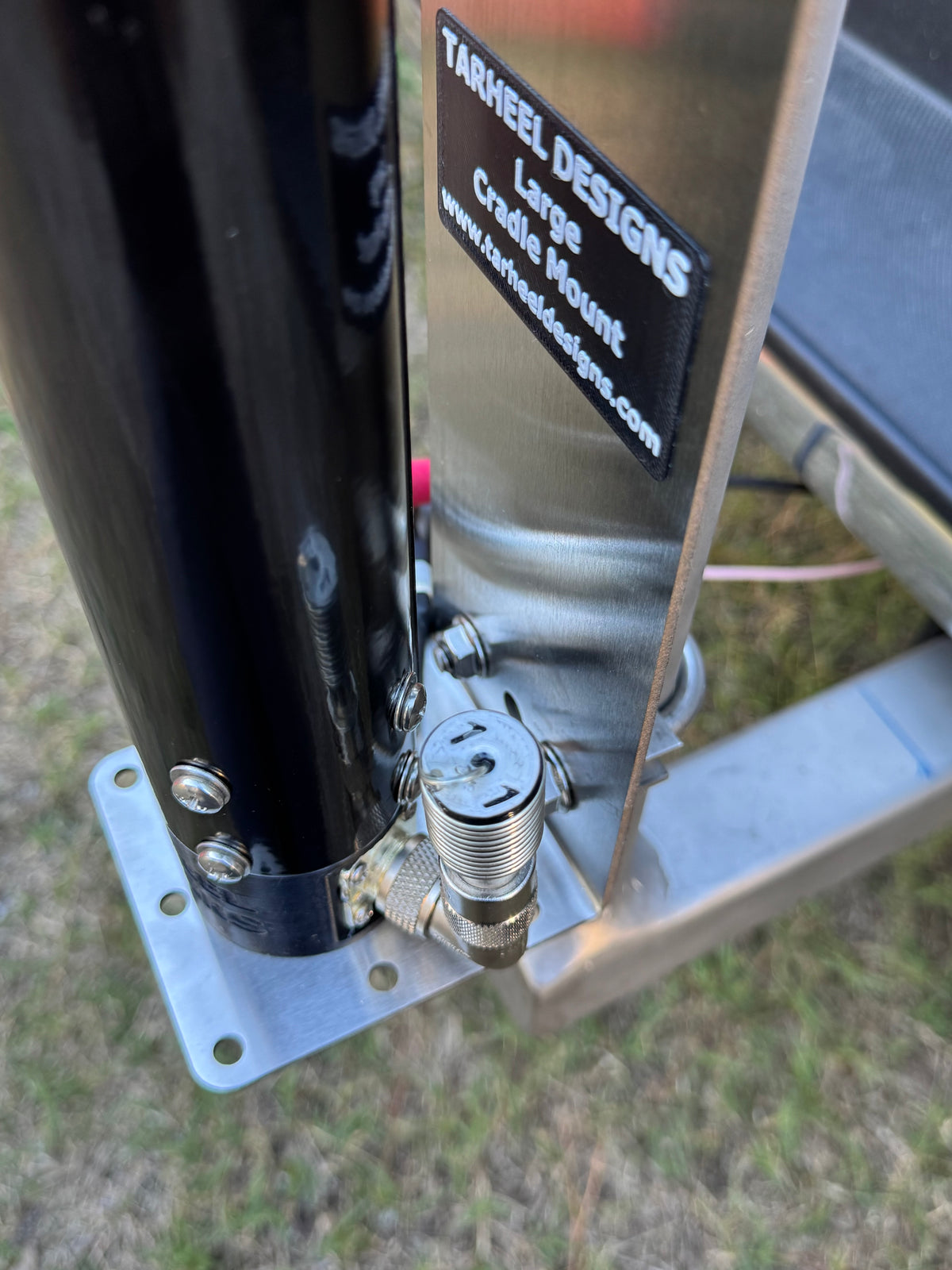

• 1/2” Direct Bolt Mounting
• Weight -- 8.0 Lbs
• Double Roller Ball Thrust Bearing
• Extended Sensor Counter for Controllers

Included with Antenna

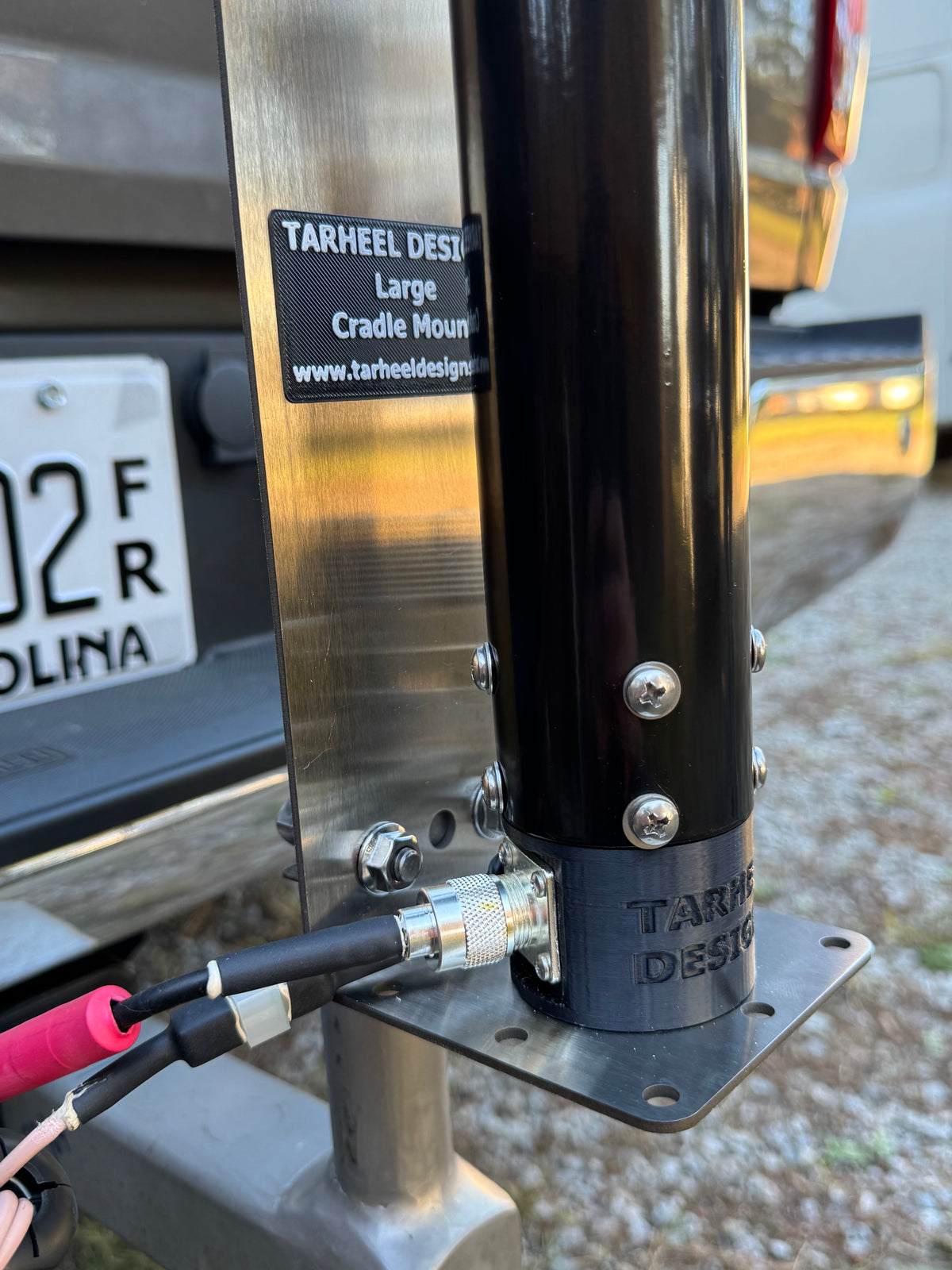

• Large Cradle Mount
• 66" Whip
• Up/Down Switch
• 20' Control Cable w/gold plated connectors
• 1/2" Snap-it Ferrite
• Triple Match “Spud” #11  (1.115uH)
• 90 Degree Coax adapter for “Spud”

Made in the USA

CLICK HERE FOR INSTALL PICTURES
